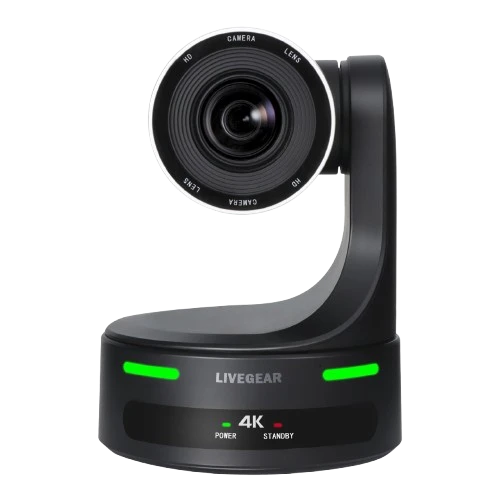

MODEL NO: PT04 - 4K ULTRA HD PTZ CAMERA

4K@30fps / 20X / USB3.0 + HDMI + LAN + 3G-SDI MC3808-20X

1. 🎥 4K@30fps
2. 🔍 20x Optical Zoom
3. 🔌 HDMI Interface
4. 🔁 Pan: ±170° / Tilt: -30°~+90°
5. 🌐 LAN Interface
6. 🔌 USB 3.0
7. 📡 IR Remote Control
8. 🌐 NDI|HX (Option)
9. 📺 Support 3G-SDI

Features

1. 8.5 million pixels, 1/2.8” HD color CMOS Sony sensor
2. 4K/30fps, 1080P/60fps, 1080P/30fps, 720@30fps
3. Pan ±170°, Tilt: -30°~+90°, the maximum speed of horizontal rotation: Pan: 0°~90°/s, Tilt: 0°~90°/s
4. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition
5. 9 preset positions by remote controller, 200 preset positions by PC or remote control unit, memory auto saved when power off
6. Using PC to control camera with Sony VISCA or Pelco command
7. IP / USB3.0 / HDMI / RS-232/422/485 / 3G-SDI / 3.5mm line in interface
8. With IR remote control, RS485, RS422, RS232 and other control method

Product Specification

Camera, Lens

1. Image Sensor: 1/2.8inch CMOS Sony sensor
2. Min Lux: 0.1Lux(F1.6)
3. Effective Pixel: 8.5 MP
4. Signal: PAL/NTSC
5. Lens: 20X Optical zoom, 16X digital zoom
6. Shutter Speed: 1 to 1/10000
7. Horizontal View Angle: 58.7° (W) ~ 3.2° (T)
8. Resolution:
9. HDMI: 4K30/4K25, 1080P/60, 1080P/59.94, 1080P/50, 1080P/30, 1080P/29.97, 1080P/25,
10. 720P/60, 720P/50
11. SDI: 1080P/60, 1080P/59.94, 1080P/50, 1080P/30, 1080P/29.97, 1080P/25, 720P/60, 720P/50
12. Focus Mode: Auto/Manual
13. Exposure Control: Auto/Manual
14. Gain: Auto/Manual
15. White Balance: Auto/Indoor/Outdoor/Manual
16. Image Effect: Full color/black and white/image flip

Interface

1. Video Interface: USB3.0, HDMI, IP, 3G-SDI, NDI|HX (option)
2. Video Compressed Format: YUV2 / MJPG / H264/H265
3. Control Interface: RS-232, RS-422, RS-485
4. Control Agreement: Sony VISCA, Pelco P/D, VISCA over IP, ONVIF
5. Communicate Baud Rate: 2400/4800/9600/11520/19200/38400
6. Power Interface: DC12V / POE

PTZ

1. Pan: ±170° (max. speed: 90°/s)
2. Tilt: -30° ~ +90° (max. speed: 90°/s)

Others

1. Power Adapter: Input AC100V~AC240V Output DC12V/2A
2. Decoder: Built in
3. Input Voltage: DC12V
4. Power Consumption: 12W (MAX)
5. Storage Temperature and Humidity: -10°C ~ +60°C
6. Working Temperature and Humidity: -0°C ~ +40°C
7. Operating Environment: Indoor
8. Size: 161.1133.6187mm
9. Weight: 1200g
