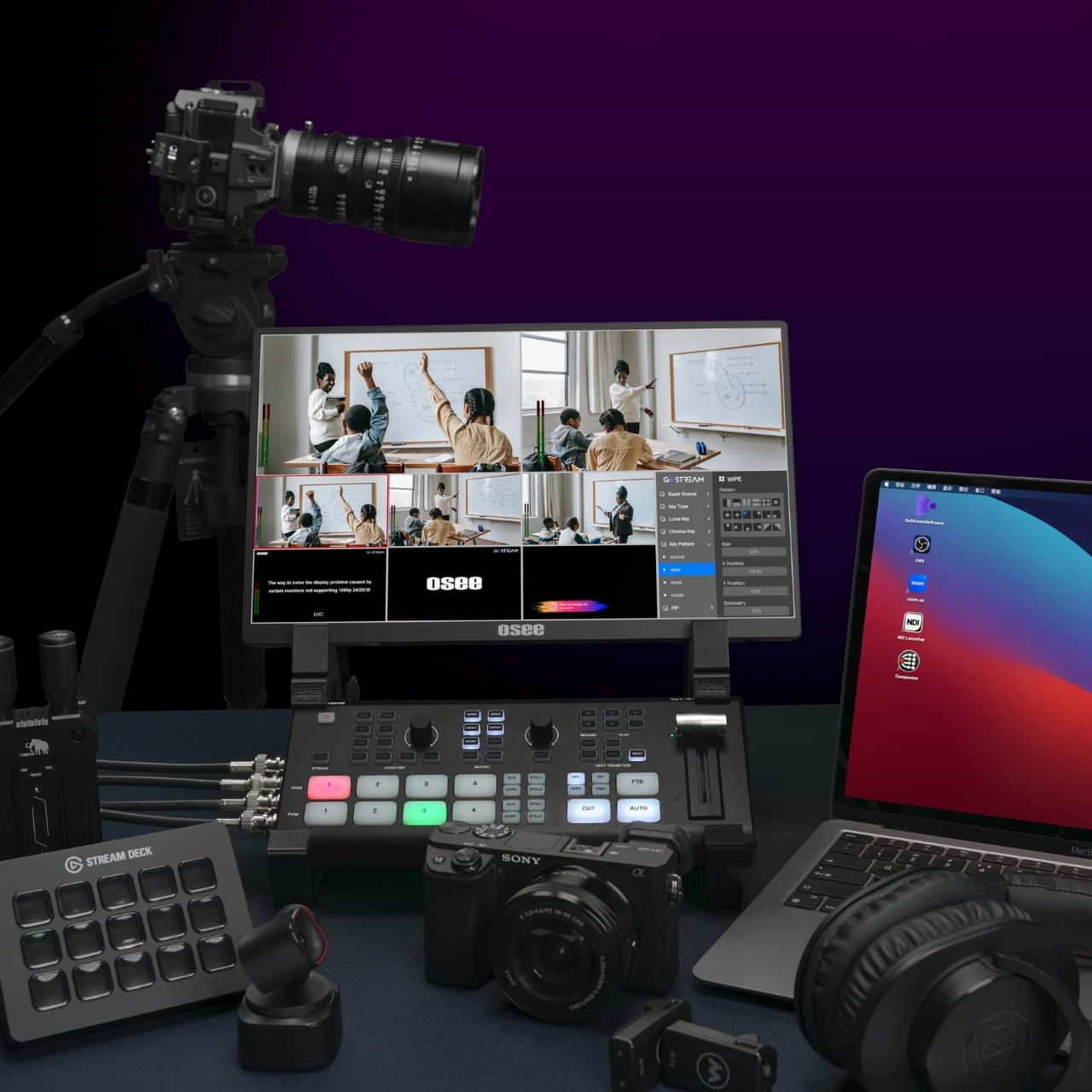

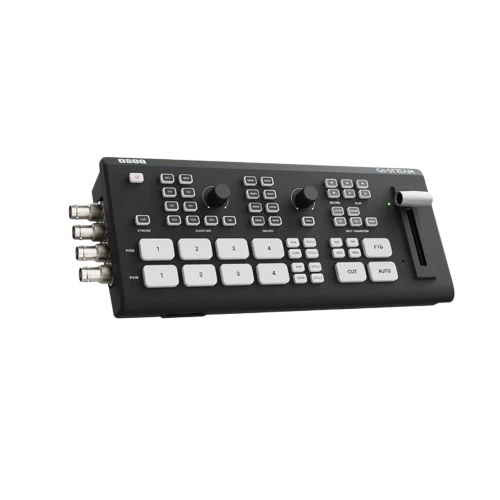

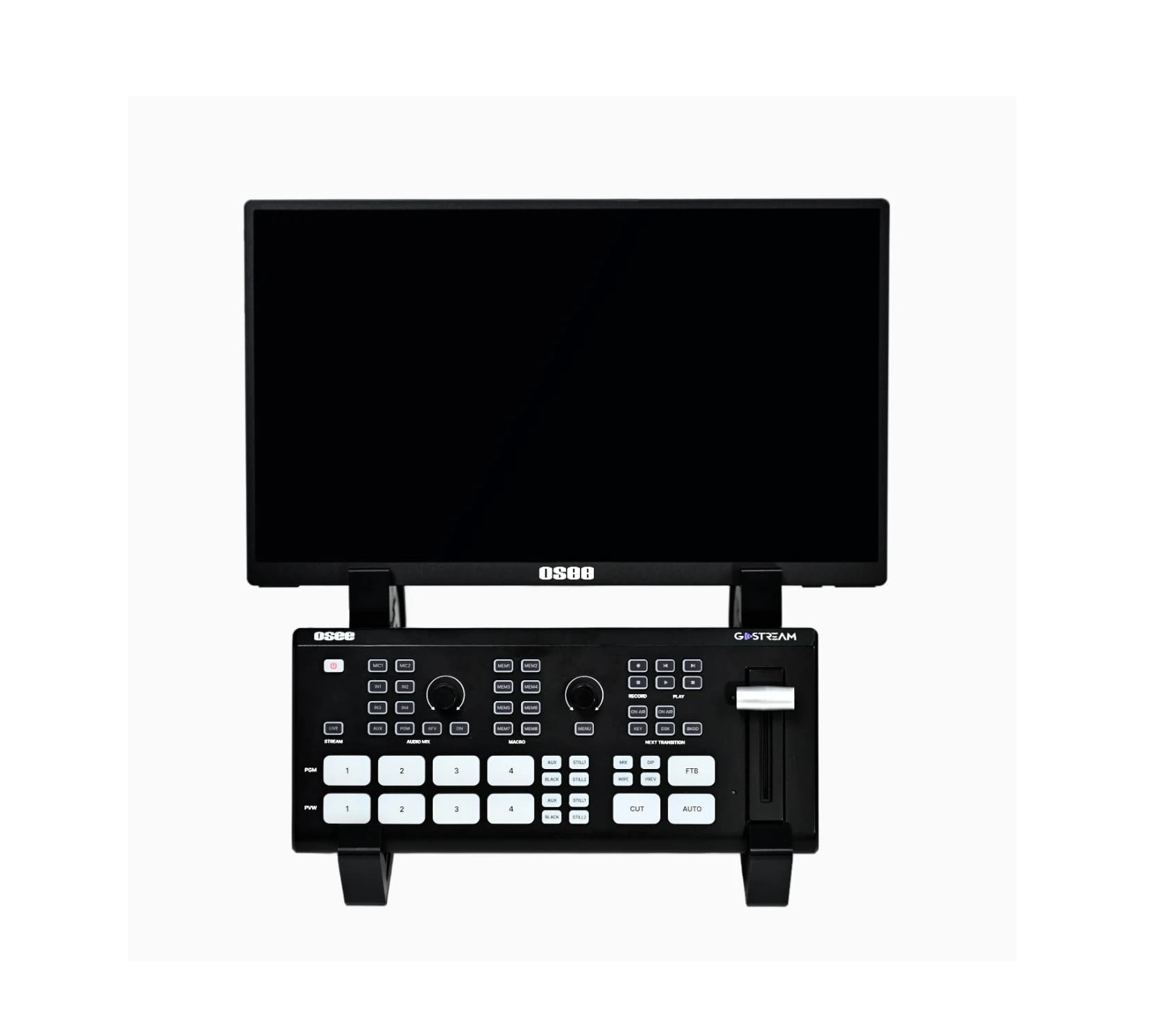

🎬 OSEE GoStream Duet – Compact SDI/HDMI Mixer, Switcher & Streamer

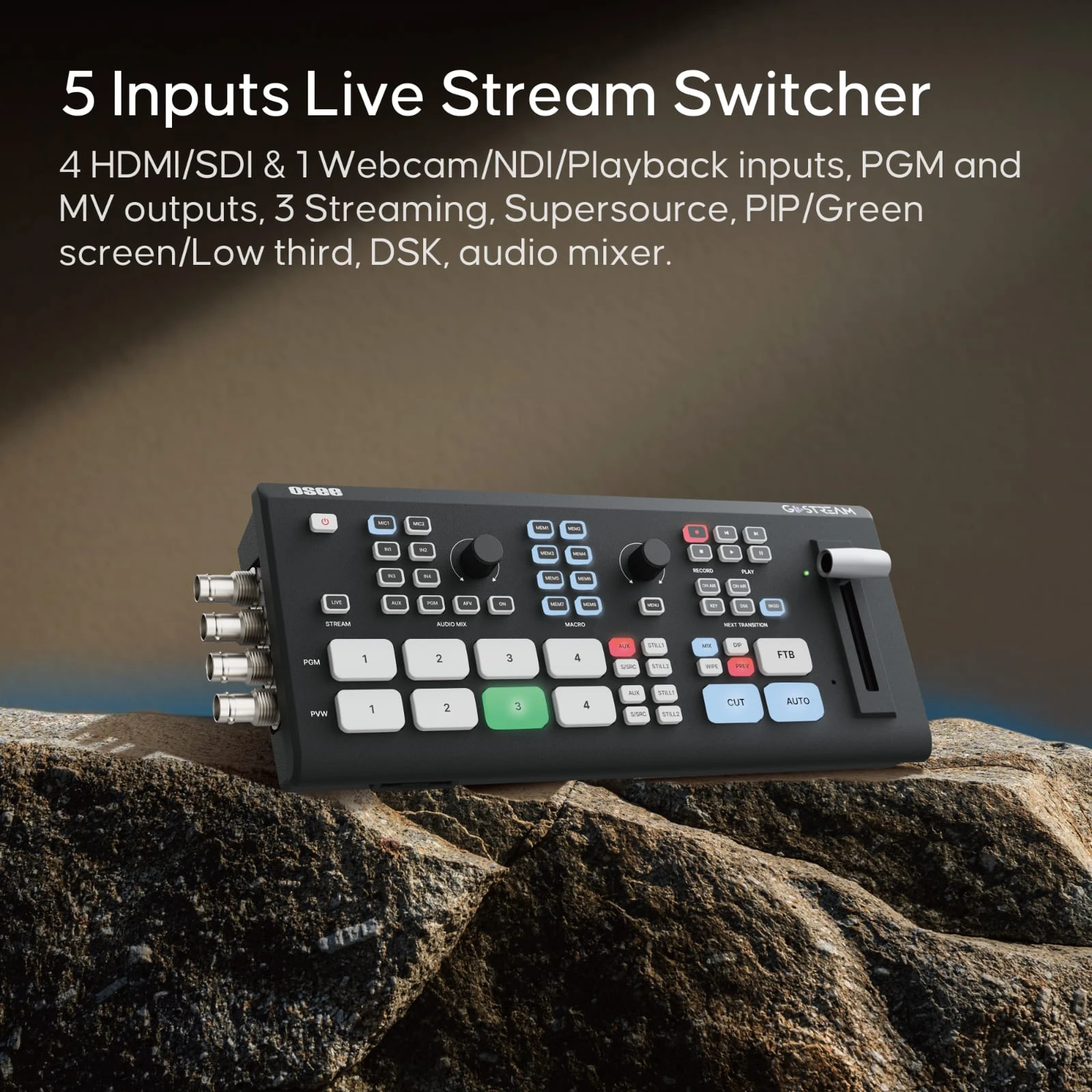

The GoStream Duet is a portable, all-in-one live production unit that combines video switching, NDI|HX streaming, and direct recording. It features up to 4 HDMI inputs, 4 SDI inputs, a USB-C/UVC input, and an optional NDI source via Ethernet. Equally versatile, it outputs to dual HDMI and USB-C while supporting up to 1080p60 resolution. Stream directly to up to three platforms simultaneously or record internally to an SD card or external SSD.
YOUTUBE Video Link: https://youtu.be/72bS3LPorWI
✅ Key Features & Benefits:
- 4× HDMI + 4× SDI Inputs & 1× USB-C/UVC + NDI Source:
- Seamlessly switch between a variety of video sources, including cameras, USB devices, and NDI|HX streams.
- Dual HDMI Outputs & USB-C UVC Output:
- Use both HDMI outputs for program and preview, plus UVC output for webcam capture by PC or streaming software.
- Built-in Live Streaming to RTMP/IP Platforms:
- Live stream to up to 3 platforms simultaneously (e.g. YouTube, Facebook, Twitch).
- Internal Recording & Playback:
- Record your program and all channels in H.264 up to 70 Mb/s to SD card or SSD, and playback without a PC.
- Advanced Multi-view & Mix Layouts:

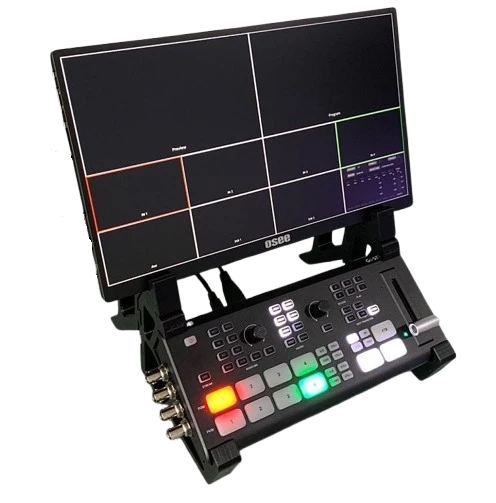

- Preview up to 5 channels with tally, audio meters, overlays; supports Super Source layouts, PIP, DSK, chroma key, 18 transition styles.
- Professional Audio Control:
- Mixer supports two MIC/line inputs plus HDMI/SDI audio; enable AFV, faders, balance, and headphone monitoring.
- Macro Control & NDI License:
- Offers up to 8 programmable macros and includes a free NDI HX license upon firmware upgrade.
🔧 Technical Specifications:
FeatureSpecification |
Video Inputs | 4× HDMI, 4× SDI (auto-detect), 1× USB-C/UVC, 1× NDI via Ethernet |
Video Outputs | 2× HDMI (clean preview & program), 1× USB-C UVC (1080p30) |
Streaming | RTMP / IP streaming to 3 platforms concurrently |
Recording | Internal SD (up to 256 GB) and USB-C SSD support (H.264 up to 70 Mb/s) |
Layout & Keying | PIP, DSK, chroma and luma key, Super Source layouts, custom graphics |
Audio | 2× analog inputs + HDMI/SDI channels, headphone out, AFV control |
Control Options | On-device GUI, PC/Mac software, Bitfocus Companion support |
Power | 12 V DC, ~14 W, durable aluminum shell |
Dimensions | ~252 × 49 × 107 mm; Weight ~500 g; Temperature: 5–40 °C |
🎯 Ideal Applications:
- Small to mid-sized multi-camera live productions
- Panel discussions, webinars, houses of worship
- Podcasts or talk shows needing low-latency switching & HDMI output
- Portable or mobile streaming kits requiring internal recording + streaming
⚡ Why GoStream Duet Stands Out:
- All-in-one convenience: switcher, streamer, recorder, and monitor interface in a compact unit
- Extensive source flexibility: supports HDMI, SDI, USB, and IP/NDI feeds
- Fully featured workflow: from switching and broadcasting to playback—all without a PC
- Pro-level features in a portable form factor: rich audio mixing, macros, overlays, and more
