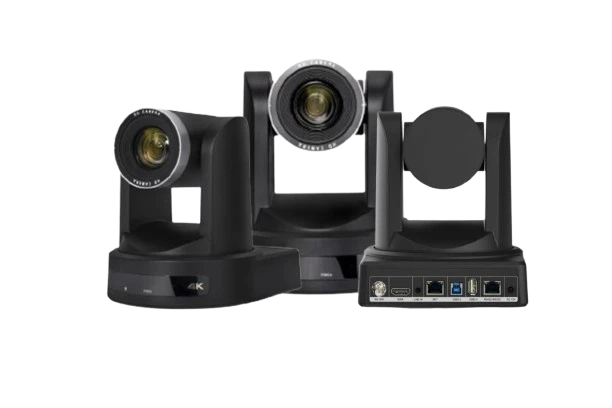

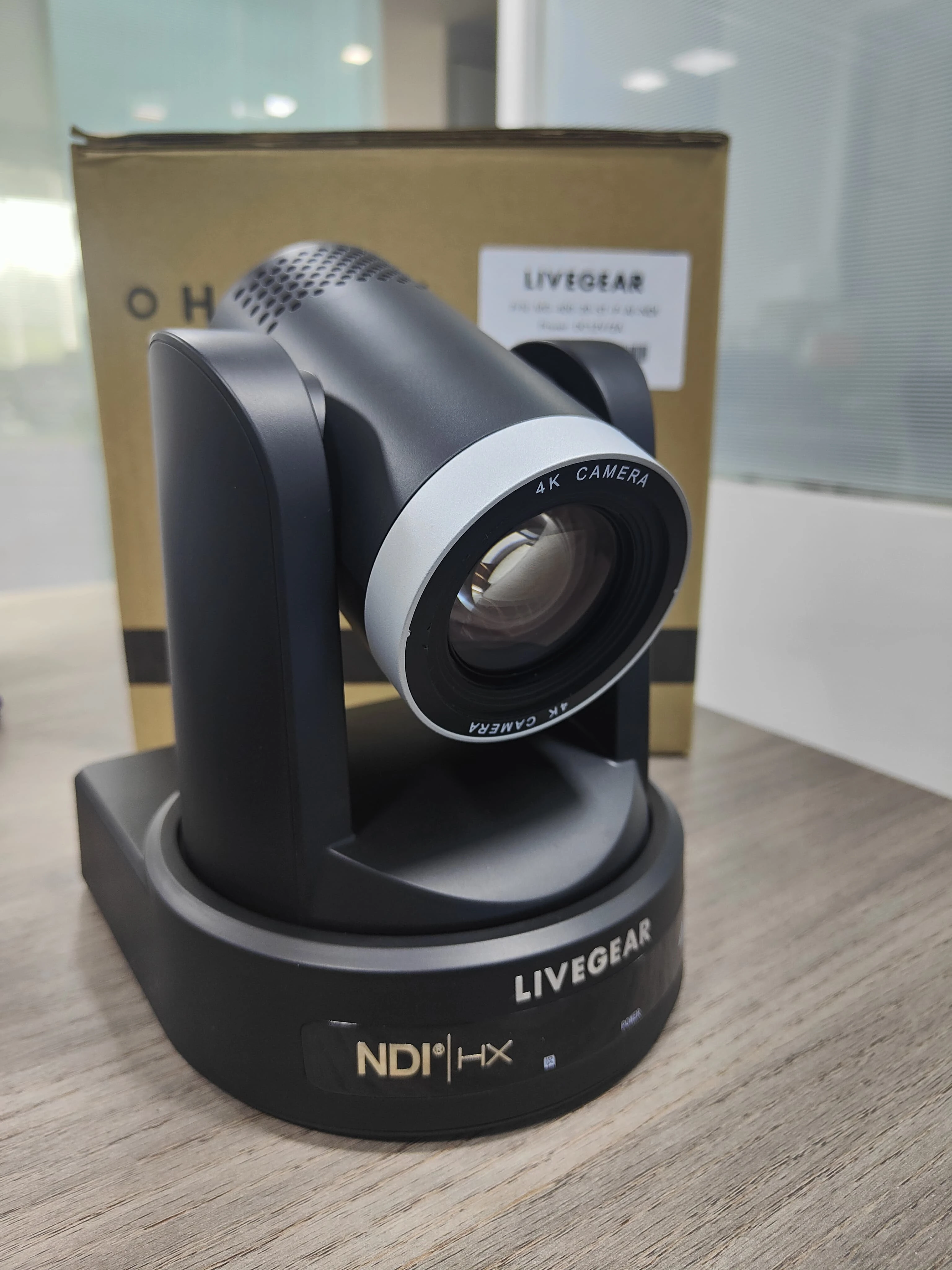

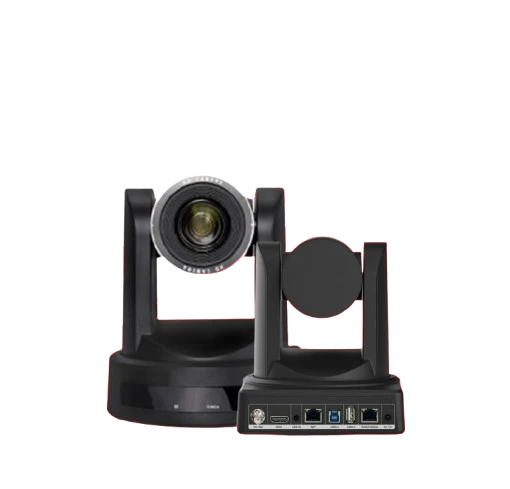

🎥 LiveGear (BZBGEAR) 4K PTZ Camera with 12× Optical Zoom
This LiveGear-branded camera (manufactured by BZBGEAR) is a professional-grade 4K UHD PTZ camera ideal for live streaming, video conferencing, worship, education, and remote production. Equipped with 12× optical zoom, superb autofocus, and versatile output options, it's built to deliver crisp video quality even in dynamic shooting environments.
✅ Key Features & Benefits:
- 🏞 4K60 UHD Output:
- Ultra-clear 4K resolution at up to 60 fps delivers sharp, fluid motion and vibrant visuals.
- 🔍 High-Quality 12× Optical Zoom + Autofocus:
- Enables detailed close-ups with fast, stable autofocus for smooth subject tracking.
- 🌐 Multiple Professional Outputs:
- Simultaneously supports HDMI, USB 3.0 (UVC/UAC), and IP streaming (RTSP/RTMP/RTMPS/NDI/ONVIF) for flexibility across hardware and software platforms.
- 🔧 Robust Control Options:
- Control via web interface, IR remote, or serial protocols (IP VISCA, Pelco‑D/P, RS‑232/485), including up to 255 preset positions (10 via IR).
- ⚡ Power‑Over‑Ethernet (PoE):
- Simplified installation with both power and network connectivity over a single Ethernet cable.
- 🎤 Audio Integration & Encoding Flexibility:
- Includes a 3.5 mm audio input and supports H.264 / H.265 codecs for high-quality, low-bandwidth streaming.
- ⏱ Smooth Pan/Tilt Control:
- Pan range ±170°, tilt –30° to +90°, with speeds up to 120°/sec and support for fine control settings.
- 🎯 Ultra-Low-Light Performance:
- Minimum illumination down to 0.05 lux enables excellent detail in low-light environments.
🔧 Technical Specifications:
FeatureSpecification |
Sensor | 1/2.5" or 1/2.8" Sony-type CMOS, ~8.5MP |
Resolution | 4K up to 60 fps; 1080p up to 60 fps |
Optical Zoom | 12× (approx. 3.8–43 mm, f/1.8–3.5) |
Outputs | HDMI, USB 3.0 UVC/UAC, IP streaming, 12G‑SDI on select models |
Control Interfaces | VISCA IP/Serial, Pelco‑D/P, ONVIF, IR, Web GUI |
Presets | 255 total (10 via IR remote) |
Connectivity | Gigabit Ethernet with PoE support |
Video Compression | H.264, H.265 |
Audio Input | 3.5 mm stereo line/mic |
Pan / Tilt Range | ±170° pan, +90° / –30° tilt at 0.1–120°/s |
Min Wow Level | 0.05 lux @ F1.8 (AGC on) |
Mount Options | Tripod, wall, ceiling (¼″‑20 mount) |
Weight & Size | Approx. 2.6 kg; ~157×189×201 mm |
Power Consumption | ~12 W; DC 12 V or PoE powered |
Included Accessories | IR remote, power supply, USB/RS‑232 cables, manual |
Warranty | Typically 3–5 years |
🎬 Ideal Use Cases:
- Live production in houses of worship, conferences, and auditoriums
- University teaching halls, webinar setups, and remote education
- Corporate video conferencing, streaming, and presenter tracking
- Event streaming with dynamic shot switching and remote control setups
🌟 Why Choose This Camera?
- Professional 4K video quality with high-speed smooth zoom
- Ultra-flexible output & protocol support for versatile workflows
- Simplified cabling and power setup thanks to PoE
- Fully controllable with presets and remote tracking
- Reliable in low light with wide range of settings
